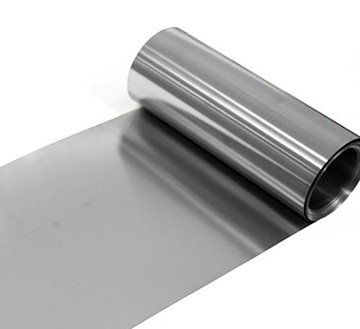

Zirconium Foil

99 - ≥ 99.98% pure

Applications:

Zirconium Foils (Zr) are used to make high temperature superconductive materials. Zirconium Foils are used to make electrodes components, foils, flanges bolts, tubes and rods for special applications.
Zirconium foil also has wide applications in the medical equipment industries, such as zirconium implants.

CAS#                                       7440-67-7

Atomic Number                    40

Atomic Weight                      91.22

Density                                   6.5 gm/cm³@25^oC

Melting Point                         1852^oC

Boiling Point                          4337^oC

Electrical Resistivity             40 μOhm-cm

Thermal Conductivity          0.227 W/cm/K@298.2K

Electronegativity                  1.4 Paulings

Specific Heat                         0.0671 Cal/g/K@25^oC

Heat of Vaporization            120 K-Cal/gm atom at 4377°C

Heat of Fusion                       5.50 Cal/gm mol

Available thicknesses:         0.001 mm to 3.0 mm

Dimensions:                          25 mm x 25 mm, 50 mm x 50 mm, 100 mm x 100 mm, 150 mm x 150 mm

Strip lengths to:                    300 mm long

Hafnium and Zirconium have almost identical chemical properties and therefore separation of the two elements is both difficult and expensive. Typical levels of Hafnium in Zirconium foil range from < 0.2% up to 0.5%. For most uses of Zirconium as foils this is not an issue except when zirconium is used in nuclear reactions. Hafnium must be removed from zirconium for nuclear applications because hafnium has a neutron absorption cross-section 600 times greater than zirconium.

The Export of Zirconium and its foils > 0.1 mm will require a valid US Export License.
