Zirconium Carbide

Applications: Zirconium Carbide powder is used as an abrasive, in metal cladding, in cermets, incandescent filaments and cutting tools. The mixture of zirconium carbide and tantalum carbide is an important cermet material.

Hafnium-free zirconium carbide and niobium carbide can be used as refractory coatings in nuclear reactors. Zirconium carbide is used extensively as coating of uranium dioxide and thorium dioxide particles of nuclear fuel. The coating is usually deposited by thermal chemical vapor deposition in a fluidized bed reactor.

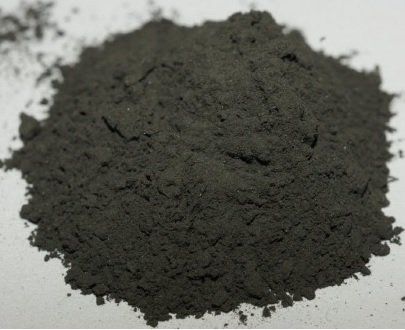

Zirconium carbide (ZrC) is an extremely hard refractory ceramic material, commercially used in tool bits for cutting tools. It is usually processed by sintering. It has the appearance of a gray metallic powder with cubic crystal structure. It is highly corrosion resistant.

                           Formula:                        ZrC

                           Purity:                             99 - 99.5%

                           Zr:                                   88.4%

                           C:                                    11.6%

                           CAS #:                            [12070-14-3]

                           Formula Weight:          103.23

                           Density:                         6.73 gm/cm³

                           Melting Point:               3540^oC

                           Boiling Point:                5100^oC

                           Mohs Hardness:           2600 Kg/Mm² @ 20^oC

                           Electrical Resistivity:   70 Micro ohm-cm

                           Crystal Structure:         Cubic

                           Form:                              Powder

ZrC Powder is available as -325 mesh and other standard granulations below 106 microns.
