Molybdenum

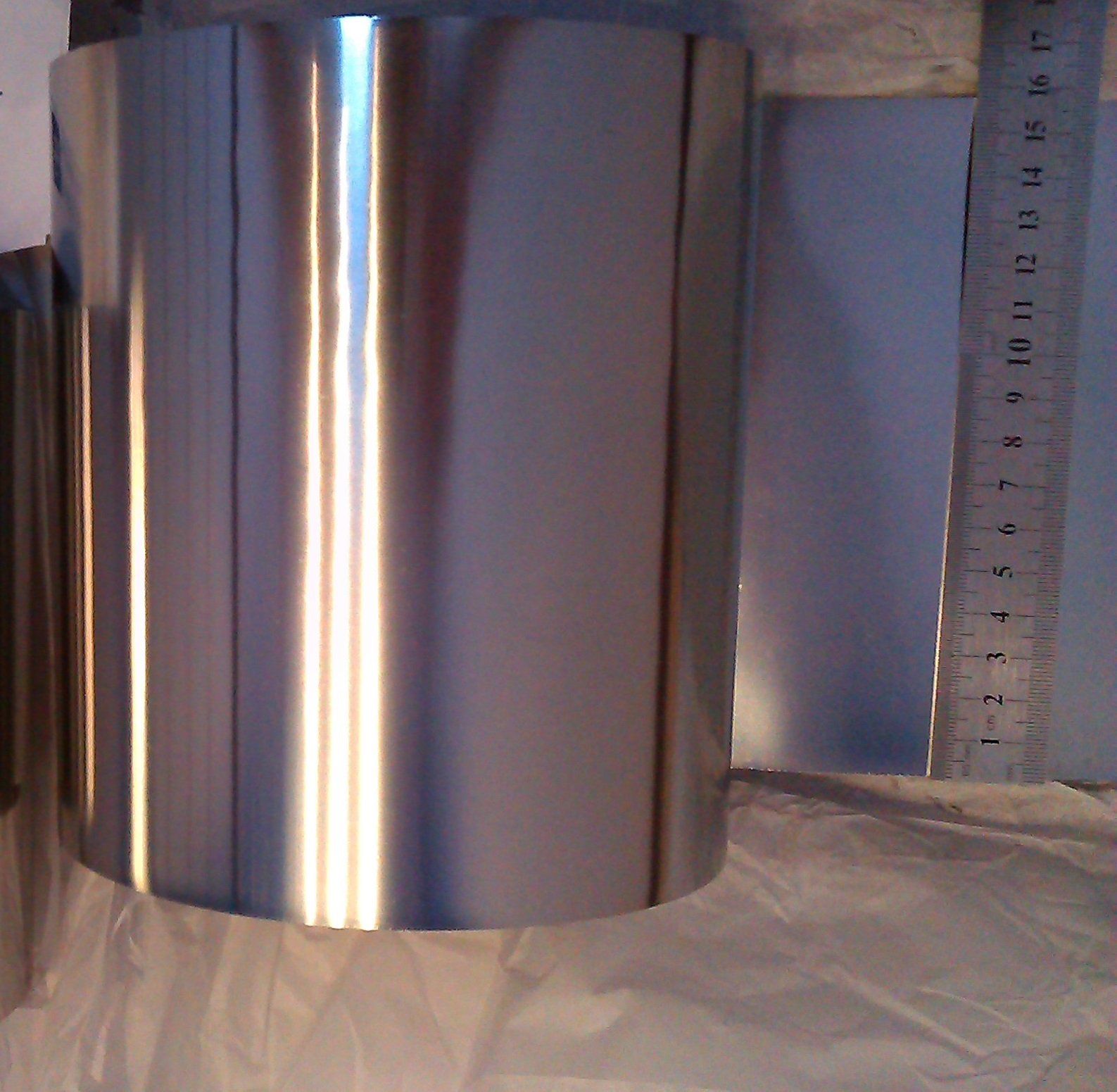

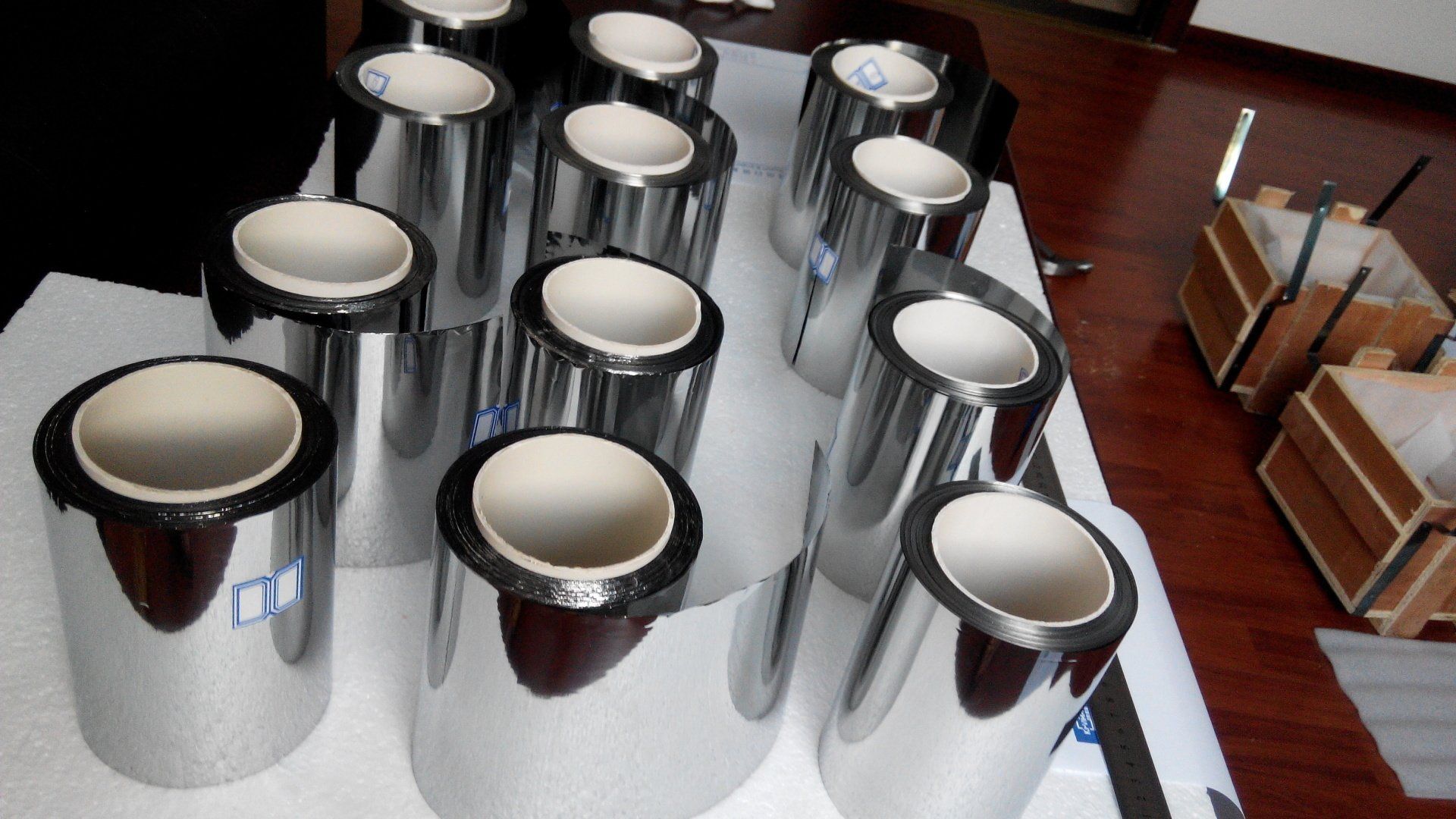

Foil, Wire, Strips, Bars, Rods, and Tubes
Molybdenum is a silver, shiny, metal, which like tungsten is located in the transition section of our periodic table with the Atomic number of 42.
Molybdenum has a high melting point (2617oC) which makes it an excellent metal for furnace heating elements, electric lamp filaments and electrodes for mercury vapor lamps.
Formula Mo
Atomic Weight 95.94
Melting Point 2617oC
Boiling Point 4612oC
Density 10.22 gm/cm3
Electrical Resistivity 5.7 Ohm cm
Molybdenum Sheet is used for parts manufacturing including lighting sources.
Molybdenum Plate is used in the construction of furnaces.
Molybdenum Rod and Bar are used for electrodes and machining parts.
Molybdenum Wire is used in high-temperature furnaces.
Molybdenum is also used to make Sputtering Targets, Crucibles, Evaporation Boats, and Mandrels for Stainless Steel Tubes.
Chemical Analysis:
Molybdenum ≥ 99.95% pure
Aluminum ≤ 0.002
Calcium ≤ 0.002
Carbon ≤ 0.010
Iron ≤ 0.010
Magnesium ≤ 0.002
Nickel ≤ 0.005
Nitrogen ≤ 0.003
Oxygen ≤ 0.008
Silicon ≤ 0.010
Tolerances: Rod and Tubes:
Diameter / Outer /Inner Diameter: +/- 0.1 mm
Length: +/- 0.1 mm
